Offline programming in SURF

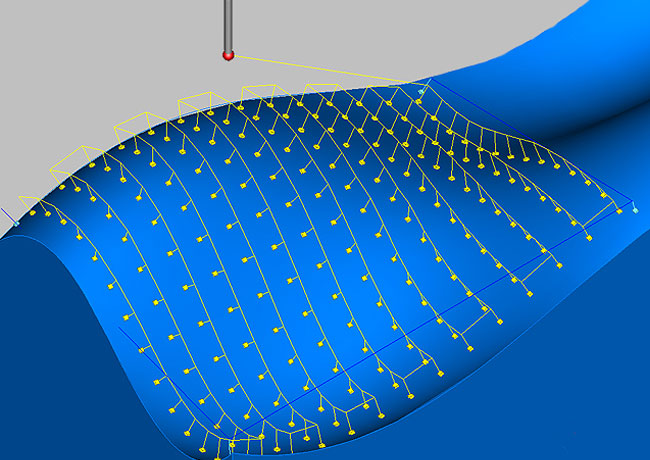

Automatic point distribution (GRID / UV) on free-form surfaces Measure point, edge point and surface point with Click'n'Measure Determine a third coordinate using 2 coordinates and one direction Import different coordinate system out of CAD models

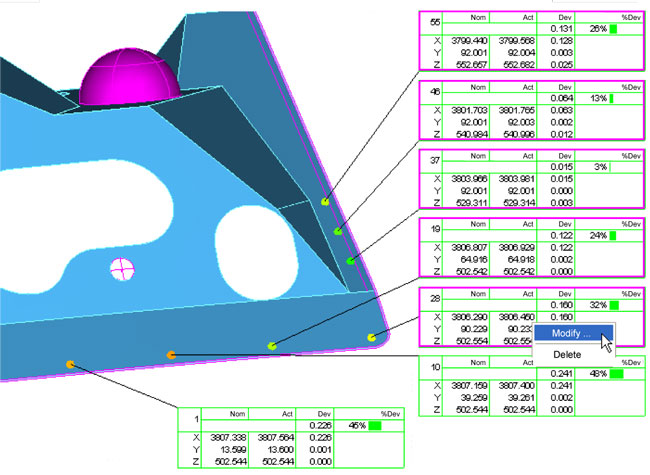

Graphical reporting

Create automatically multiple graphical report pages Multi selection of point, parameter and feature boxes in order to adjust

Features

• Evaluation of position tolerances according to the ASME reference system

Probe / Probe heads

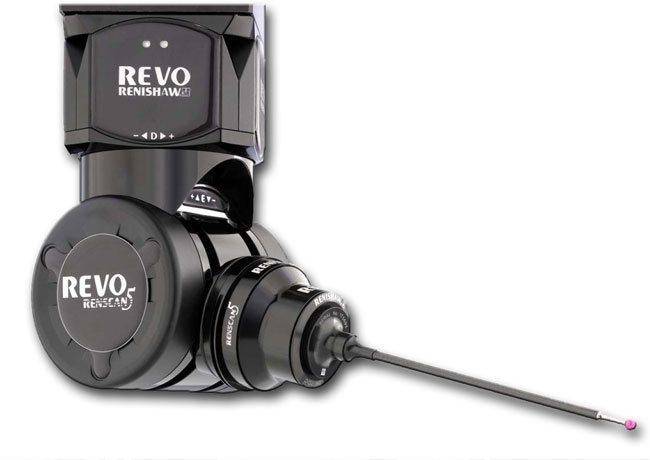

Support of Renishaw REVO / GYRO Macros for the PHS motorized probe head Calibration of discoidal probes Rotate in a given direction or towards a reference element Optimze and / or adjust styli

New processing functions

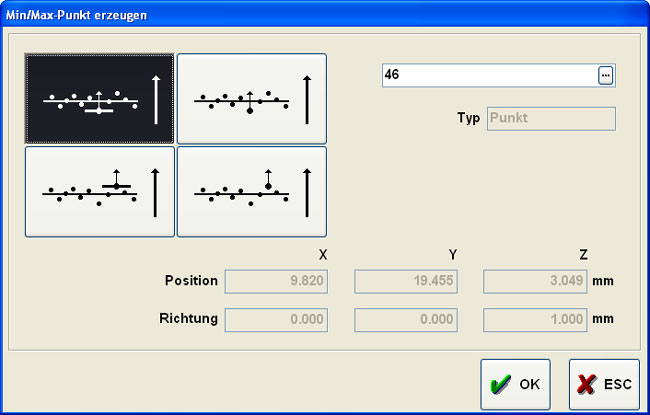

Determination of the min/max point of an element in a given direction and construction of a point or a plane with the min/max point N-Point construction: Calculation of new elements using the measurement points of existing elements Filtering of circle, circle/cylinder, cylinder, cone, sphere, line, line/plane and plane

Optical sensor Phoenix

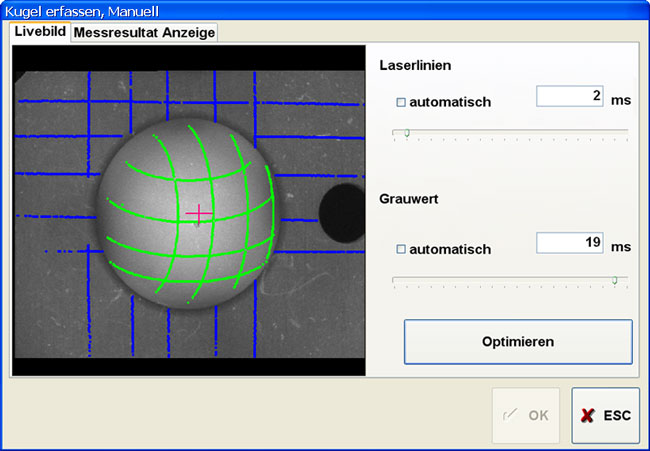

Possibility of manual measurement Integration of additional elements: sphere, edge point, outside cylinder Enhanced part inspection pro gramming Improved user support

I++ DME Client and Server

• Scanning
• PHS support (client and server)
• Enhancement of the I++ DME instruction set for tactile, triggered mode

CAD Konverter

• DXF converter for the versions DXF 2000/2002 (AC1015) and DXF R12 (AC1009)
• ACIS converter for versions up to 15
• CATIA V4 converter for versions 4.1.x and 4.2.x
• CATIA V5 converter for versions from R5 up to R16
