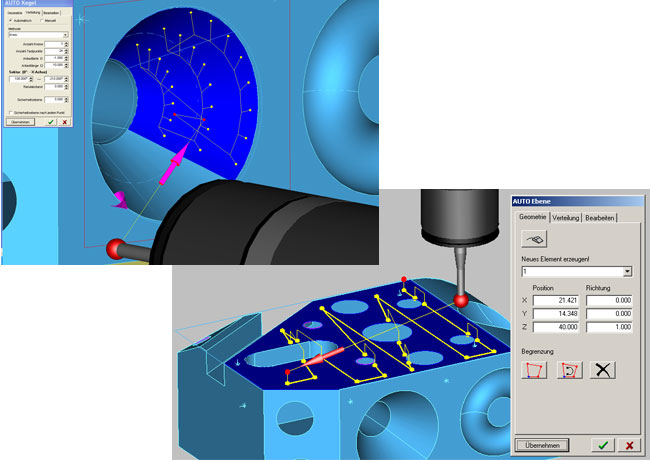

Enhanced offline programming system GRIPS for geometry & free form surface

Scanning of elements with regular geometry: cylinder, cone, sphere, circle, line, plane Interactive edge point setting by mouse click Graphic depiction of the whole probe system High Speed Scanning on defined contours

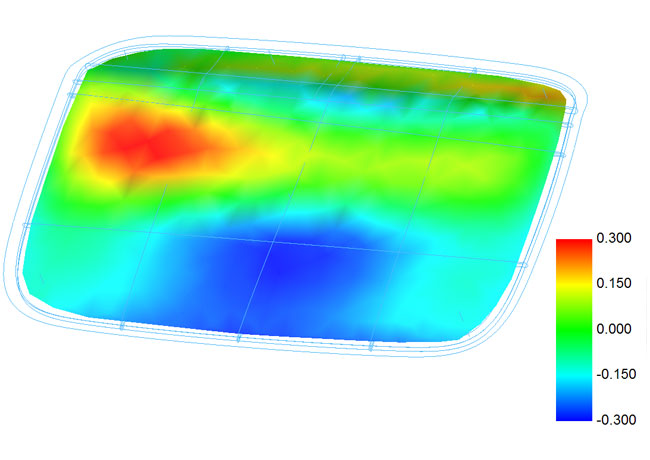

Color mapping of dimensional errors on free form surfaces

Definition of color ranges for tolerance zones Color setting for positive and negative errors Color dispersion linear with dimensional error

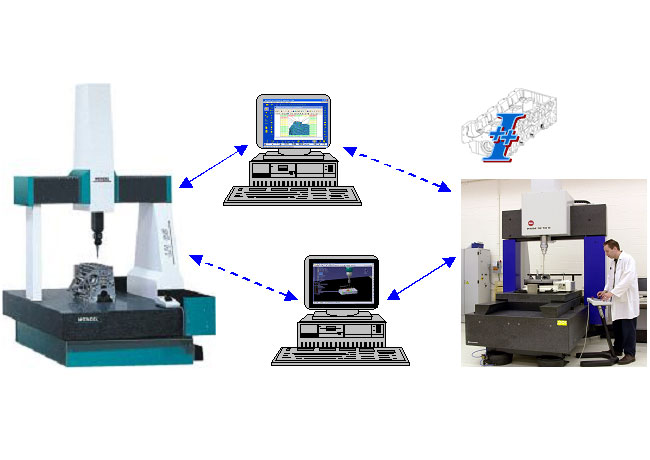

Bi-directional Support of international Standard Interface I++ DME

Metrosoft CM to be used as software client operating on I++ compatible measuring systems Metrosoft I++ DME Server for using I++ compatible measuring software on WENZEL CMM's Supports the I++ DME Standard, actually Version 1.4

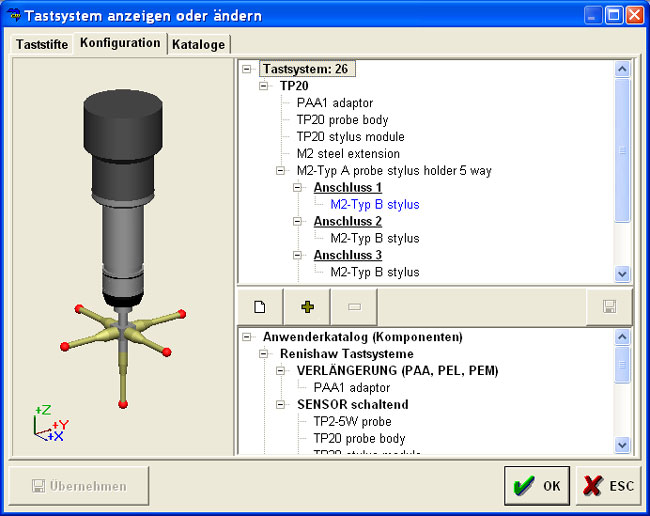

Graphic interactive Configuration of Probe Systems with Components

Template catalogue for probe component User catalogue for individual sub-assemblies Storage of probe system configurations 3D depiction of the probe configuration in the geometrical and element graphics

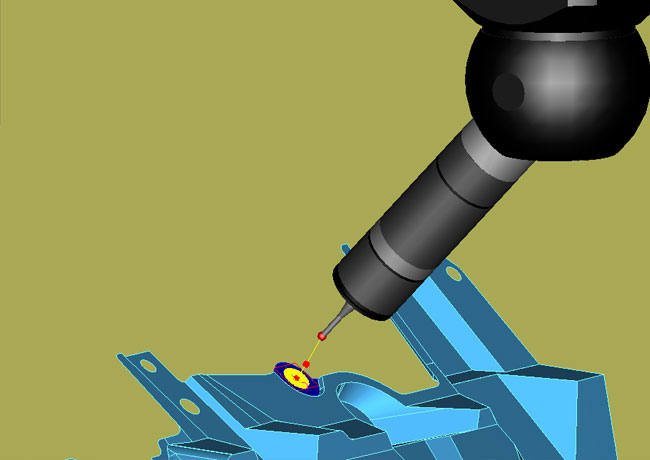

Improvements in many Details

Automatic calibration with defined safety zones Filter for various output criteria of graphic protocols Copy, paste and search function for part programs DMIS 4 support for scanning commands AUTO Mode for shorter, more flexible and probe-independent part inspection programs

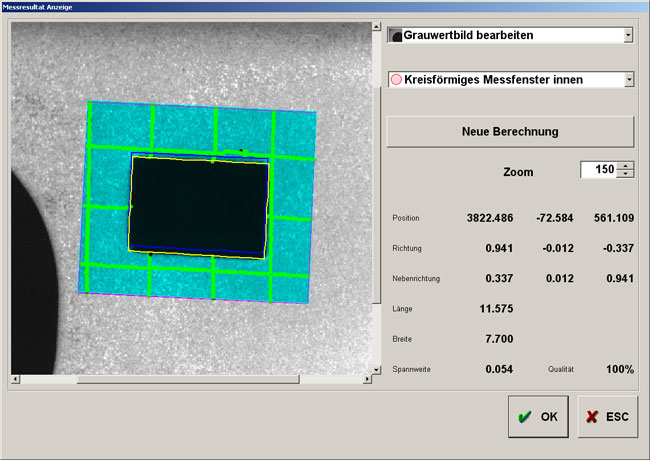

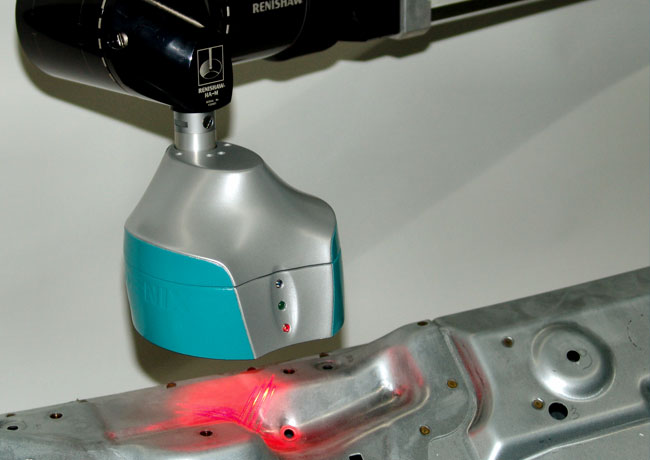

Optical CMM Sensor PHOENIX

Operates on PHS, PH10M, PH6M Automatic probe change function Automatic exposure control Hybrid measuring procedure with laser grid and gray scale analysis Measuring elements: surface point, plane, circle, rectangle, long hole Inspection speed-up through one shot grabbing of the entire feature Immune against position errors of measuring features Flexible part inspection program GRIPS incl. nominal value editing Compatible to DMIS part programs
