GRIPS - Enhanced Graphic Interactive Measuring & Programming System

Graphic interactive measuring (online, on the CMM) Graphic interactive programming (offline, without CMM) Reading and display of CAD models Generation, execution, test and editing of inspection programs

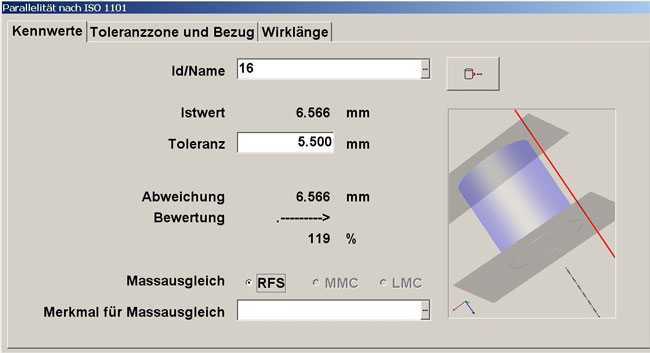

Form & Position Tolerances according to ISO 1101 / ASME Y14.5

Multiple relations MMC & LMC processing Graphic color display of tolerance zone, processed element and reference element Projection and limiting of tolerance zones by means of reference element Selection of different tolerance zones

DME Server for CMM-OS

Interface for use of alien software on WENZEL CMM and peripheral units Probe system management and calibration Definition and management of reference systems Support of multi machine mode Tested with Holos-NT V2.2.12

Scanning

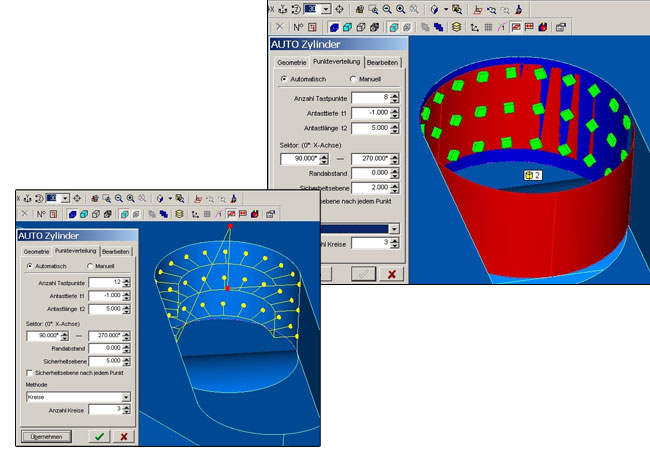

Enhanced dynamic scanning for higher performance New scanning strategies for cylinder, cone, planes, with parameter preset 3D preview (OpenGL) with online display Sphere scanning according to ISO 10360-4 Scanning with angular and star tips Calibration programs for scanning probes Scanning probe Renishaw SP25 Scanning probe Renishaw SP80 Probe changer unit FCR25 for SP25 Probe changer unit SCP80 for SP80

Probe Changer Management

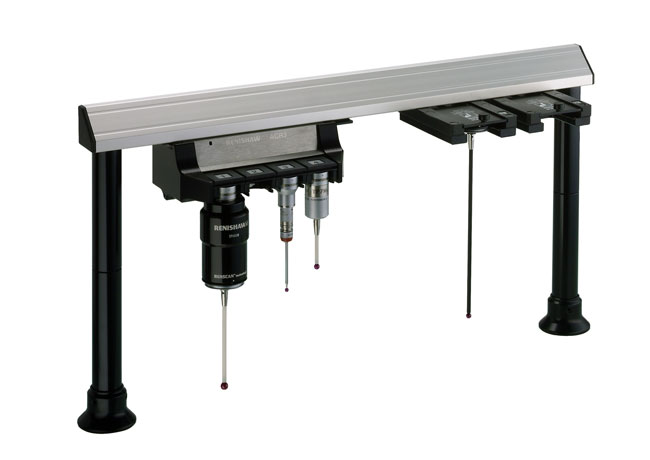

Multiple identical probe changer units Multiple different probe changer units Combination of probe changer and stylus changer Configuration of type and number Calibration of positions on the CMM Probe changer offset distances

Enhancements even in Detail

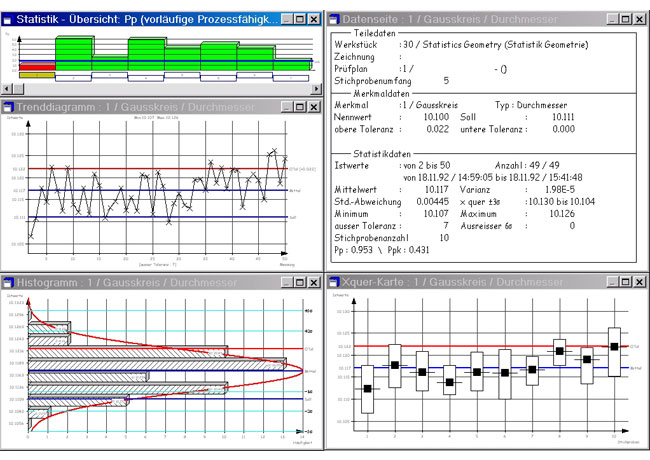

Extended statistical functions (enhanced graphic protocol; preliminary process capabilities Pp, Ppk) DMIS Program Enhancements: - Subroutine call - Editing tools for DMIS program tests (hold positions, pause, ...) - Variables manager Sophisticated temperature compensation with sequential monitoring Enhanced status display (dimensional unit, twist & tilt angle, rotary table system and angle)
